CONTROL ROOM · CONFERENCE

Clario Shield — Fine-Pitch COB LED Display for Indoor Fixed Installation

Flip-Chip COB Stability in a Slim, Efficient Display

Clario Shield is a fine-pitch LED display built for indoor fixed installation — where clarity, stability and efficiency are part of the infrastructure rather than a temporary effect. Pixel pitches from 0.93 mm to 1.56 mm and a native 16:9 cabinet make clean 2K, 4K and 8K configurations straightforward, while a flip-chip COB structure and front IP65 protection keep the surface stable through years of daily operation.

Request a quote

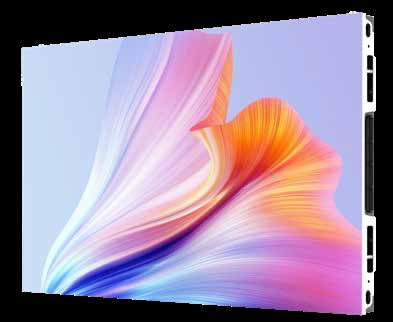

Clario Shield fine-pitch COB LED display panel showing colour graphics

At a glance

Product familyClario — indoor fixed installation
Pixel pitches0.93 mm · 1.25 mm · 1.56 mm
Model numbersOS-FISS-IRCSH0.93-SSC · OS-FISS-IRCSH1.25-SSC · OS-FISS-IRCSH1.56-SSC
LED arrangementFlip-chip COB 0306
Cabinet600 × 337.5 × 37.5 mm, native 16:9
Cabinet weight4.5 kg (9.92 lb)
Brightness600 nits
Contrast / grayscale5,000:1 · 13-bit
Refresh rate3,840 Hz
IP ratingIP65 front / IP30 rear
Power≤70 W max, ≤23 W average per cabinet
Service accessFront (magnetic tool)

The product specifications can be customized.

BROCHURE

Download the Clario Shield brochure

All three models (0.93 / 1.25 / 1.56 mm) side by side — module and cabinet dimensions, resolution, power draw and certifications per SKU, plus mechanical drawings for mounting.

None of this is on the page. The page tells you which product. The brochure tells you which model.

    Fine-Pitch Clarity, Made Clear

    Designed for professional indoor environments, Clario Shield delivers fine-pitch clarity in a display format that scales naturally and remains visually balanced across different system sizes.

    Native 16:9 cabinet format
    A true 16:9 cabinet design allows displays to scale cleanly into 2K, 4K, and 8K systems, preserving balanced proportions across different screen sizes. This standardized format avoids irregular layouts and unnecessary scaling, helping large displays remain visually composed and technically efficient.
    Fine-pitch resolution for close-range viewing
    Pixel pitches from 0.93 / 1.25 / 1.56 mm are designed for indoor spaces where viewers are close to the screen and visual accuracy matters, keeping text, data, and graphics clear and comfortable to read.
    160° wide viewing angle
    A 160° viewing angle helps maintain clear, consistent visuals across wider seating layouts and multi-viewer indoor spaces.
    600 nits brightness5,000:1 contrast ratio13-bit grayscale3,840 Hz refresh rateResolution ladder shown on the brochure: 2K 1920×1080 · 4K 3840×2160 · 8K 7680×4320 · 16:9

    Consistency That Holds Over Time

    In fine-pitch displays, consistency is what makes performance last. Clario Shield brings the flip-chip COB design, delivering efficient heat transfer, reinforced surface protection and clean image continuity through years of professional indoor operation.

    Flip-Chip COB Design
    Clario Shield adopts a flip-chip COB design for efficient heat transfer and stable fine-pitch performance. By reducing traditional wire bonding, the design creates a cleaner internal structure for fine-pitch LED displays, bringing steadier operation, lower power demand and stronger long-term reliability.
    Front IP65 Protection
    The front surface is rated IP65, while the rear side is rated IP30. This front-facing protection strengthens the visible LED surface for daily indoor use, including dust exposure, cleaning and incidental contact.
    ArmoCoat Technology
    ArmoCoat integrates surface protection across the LED surface, enhancing durability while creating a smoother, cleaner, and more visually consistent display surface. Provides resistance against moisture, dust and salt mist. Increases surface durability against incidental contact. Helps reduce moiré and maintain a uniform look in camera-facing applications. This layer keeps panels easier to maintain and visually consistent over long-term operation.

    Lightweight and Unobtrusive, by Design

    For permanent indoor installations, physical presence matters. Clario Shield is engineered with a lightweight, slim structure that reduces structural load and keeps displays visually unobtrusive within professional spaces.

    Ultra-light cabinet weight
    Each Clario Shield cabinet weighs around 4.5 kg, helping reduce load on walls and mounting structures and making handling easier during installation.
    Slim depth for close-to-wall mounting
    An edge thickness of around 30 mm, with a combined depth of approximately 37 mm when used with the slim bracket, keeps the display close to the wall without adding visual bulk. The reduced weight and shallow depth simplify structural coordination for fixed indoor projects.

    Efficient Operation, Day After Day

    For fixed indoor displays that operate for extended hours, Clario Shield is designed to support stable, efficient daily operation.

    Stable thermal performance
    An optimized internal layout supports effective heat dissipation, helping maintain consistent performance during extended operation.
    Power and signal redundancy (optional)
    Backup power and dual signal loop design help keep the display running when reliability matters most.
    Low power consumption
    Clario Shield is optimized for low power usage in real operation, helping reduce energy demand in long-running indoor installations.
    Maximum power consumption ≤70 W per cabinetAverage power consumption ≤23 W per cabinet

    Installation and Maintenance, Kept Simple

    Clario Shield is designed to reduce unnecessary steps, keeping installation and maintenance straightforward in fixed indoor environments.

    Front-access maintenance
    Modules can be accessed from the front using a magnetic tool, making routine service easier in indoor installations where rear access is limited.
    Mobile all-in-one display
    Clario Shield can be configured as a mobile all-in-one display, supporting collaboration and presentations in environments where the screen needs to move between rooms or zones.

    Applications

    Clario Shield fits professional indoor environments where displays are expected to operate continuously and deliver clear information at close viewing distances.

    Conference roomsCommand and control centresRetail

    Clario Shield in use

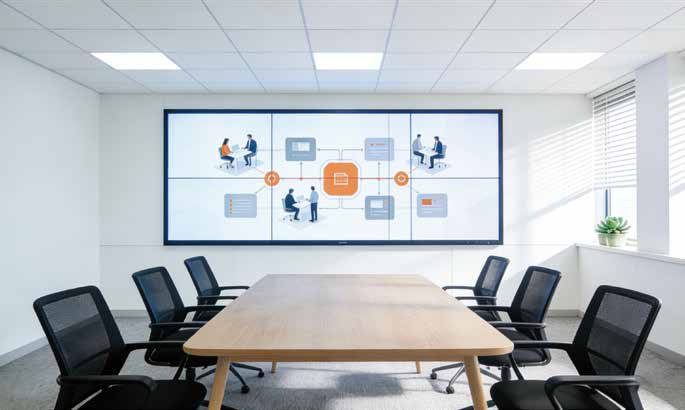

    Clario Shield LED display installed in a corporate conference room
    Conference rooms

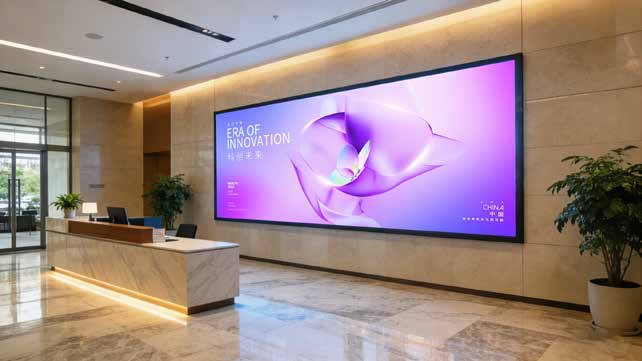

    Clario Shield wide LED display in an office lobby
    Reception and lobby

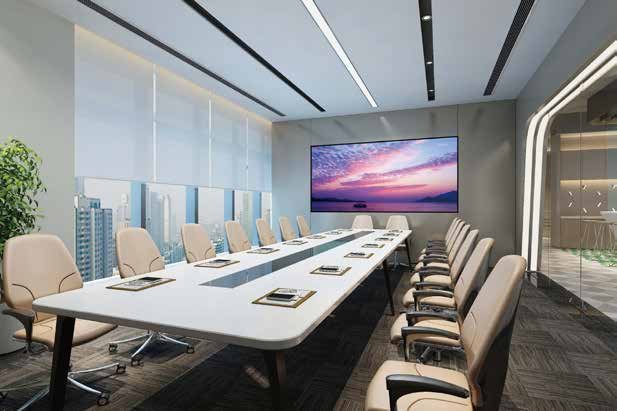

    Clario Shield display at the head of a boardroom table
    Boardrooms
