Clario Slim — Ultra-Thin All-in-One Fine Pixel Pitch LED Display
Digital Wallpaper Solutions — ultra-thin, all-in-one fine pixel pitch
Clario Slim is ÖSEL’s flagship fine pixel pitch display: an all-in-one panel just 29.5 mm thick that turns a wall into a seamless digital surface. A native 16:9 cabinet and pitches from 0.9 mm to 3.1 mm make 2K, 4K and 8K builds straightforward, while an integrated media player, front-service modules and a slim-line floating bracket keep installation and upkeep simple.
At a glance
| Product family | Clario — indoor fixed installation |
| Pixel pitches | 0.9, 1.2, 1.5, 1.8, 2.3, 2.5, 3.1 mm |
| Panel lines | Indoor IMD Panel (IMD 2×2) · Indoor SMD Panel (3-in-1 SMD) |
| Cabinet | 600 × 337.5 × 29.5 mm, native 16:9 |
| Cabinet weight | 5.2 kg (11.46 lb) |
| Brightness | 600 – 1500 nits |
| Refresh rate | ≤3,840 Hz |
| IP rating | IP30 |
| Signal inputs | DVI, HDMI, DP, SDI, RJ45 |
| Service access | Front (magnetic tool) |
| Mounting | Slim-line floating bracket (37 mm combined), mobile trolley, 90° corner |
The product specifications can be customized.
Download the Clario Slim brochure
All seven pitch variants (0.9 mm to 3.1 mm) side by side — module and cabinet dimensions, resolution, power draw and certifications per SKU, plus mechanical drawings for mounting.
None of this is on the page. The page tells you which product. The brochure tells you which model.
Digital Wallpaper Solutions
Ultra-thin with integrated controller and standard 16:9 aspect ratio. Optional power redundancy. Indoor applications. Quick specs: Pixel pitch 0.9, 1.2, 1.5, 1.8, 2.3, 2.5, 3.1 mm · Brightness 600–1500 nits · Cabinet size (W×H×D) 600 × 337.5 × 29.5 mm
Screen Your Spaces

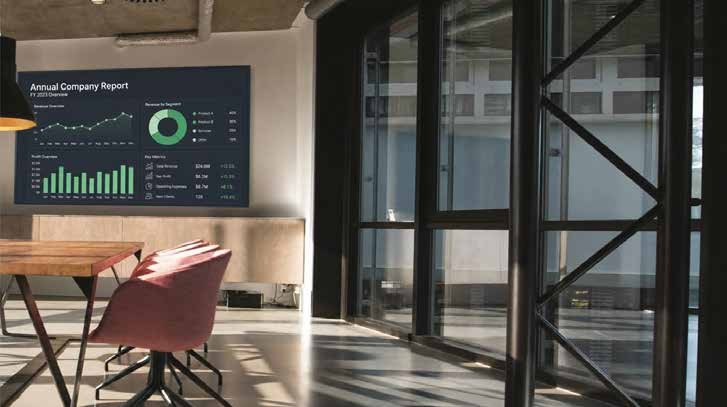

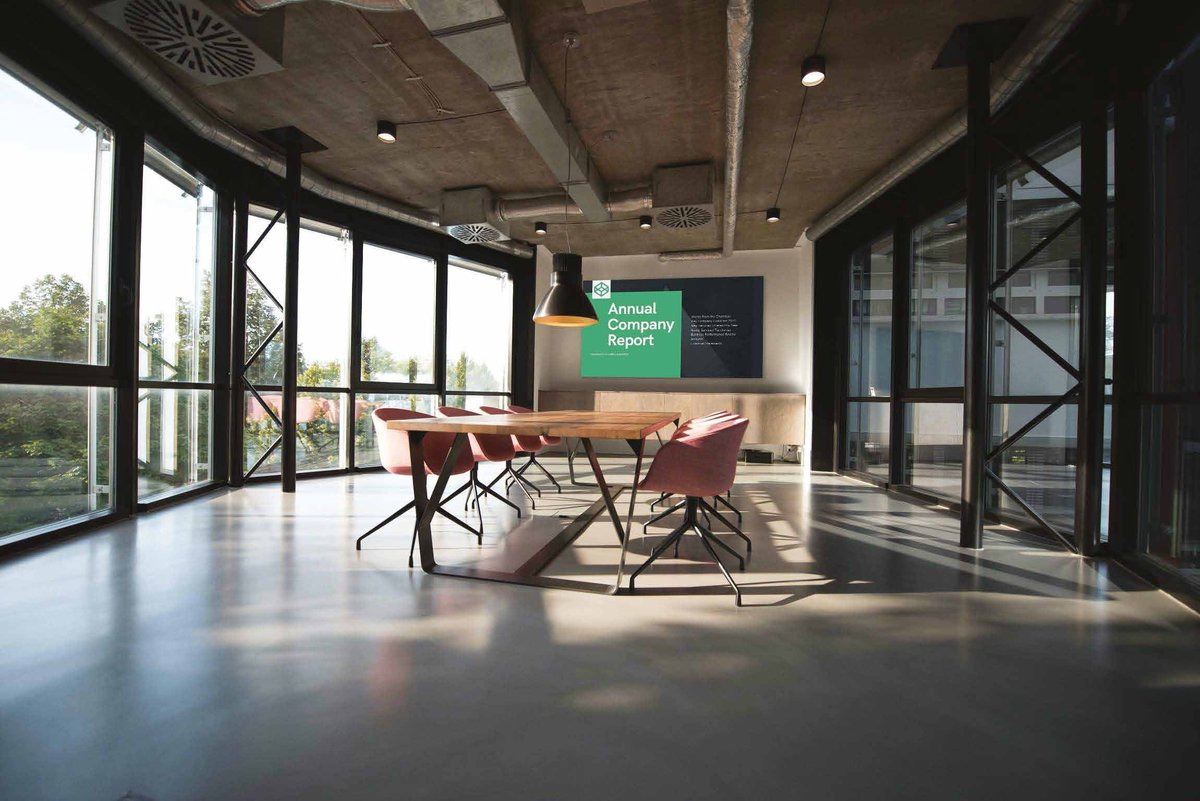

The Clario Slim series provides a new level of flexibility when it comes to using LED screens for corporate, education, and hotel environments, control rooms, broadcast, event centers, indoor advertising, digital signage and many more, offering high-performance visuals for customers, partners and employees.
High Definition, High Visual Performance
Cutting-edge IMD technology is applied with fine pixel pitch from 0.9 to 3.1 mm. Excellent black screen with a high contrast ratio. The sophisticated fine-pitch LEDs are more durable and robust. A panel ratio of 16:9 combined with fine pixel pitch allows the setup of 2K, 4K, and 8K resolution displays. Quick Installation. Multiple Options.
Ultra-Thin and Lightweight Design
Clario Slim is lightweight and features an edge thickness of 29.5 mm, with the combined thickness of only 37 mm when mounted with the slim-line floating bracket. The light and slim cabinet design with adjustable mounting frames make the installation process faster and more convenient.
Built-in Media Player
The Clario Slim all-in-one solutions feature an integrated media player to make a complete standalone screen. Clario Slim series can use traditional control solutions as well as the newest ones, allowing for comfortable use. The Clario Slim all-in-one offers a plug-and-play solution. Only a domestic plug-in is required to connect the display. Power redundancy is possible for demanding uninterrupted 24×7 operation.
Applications

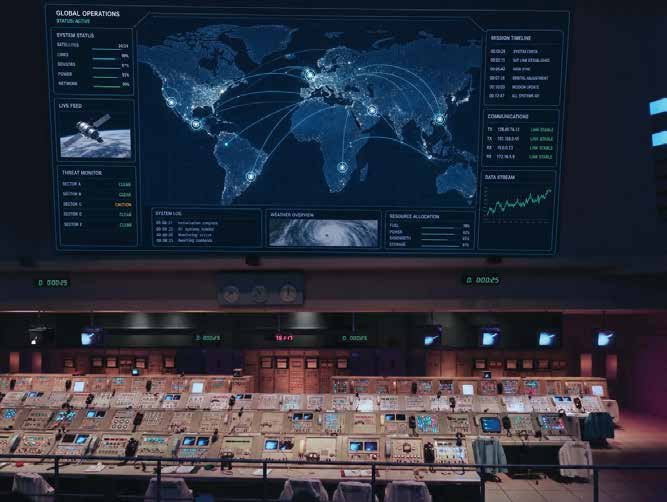

Corporate, education and hotel environments, control rooms, broadcast, event centres, indoor advertising and digital signage.
Corporate & receptionBoardrooms and broadcast studiosEducation and trainingHospitalityControl roomsDigital signage / DOOHClario Slim in use
