Clario Zen — Micro-Pitch LED Display for Control Rooms and Corporate Spaces

Micro-pitch display for immersive visuals

Clario Zen is built for rooms where the screen is never off. A micro-pitch surface in MIP or flip-chip COB, HDR10 with 16-bit grayscale and a 100,000:1 contrast ratio hold detail in both highlights and shadow, while FrostCore keeps the panel cool to the touch and ArmoCoat keeps it clean and consistent through years of service.

Request a quote
Clario Zen micro-pitch LED display showing blue abstract graphics

At a glance

Product familyClario — indoor fixed installation
Pixel pitches0.93 mm · 1.25 mm · 1.56 mm
LED arrangementsMIP0606 (“SSM”) or Flip-chip COB (“SSC”)
Models6 variants: OS-FISS-IRCZ0.93/1.25/1.56 in SSM and SSC
Cabinet600 × 337.5 × 29.5 mm (37 mm max; 44.5 mm wall-mount depth)
Cabinet weight≤4.5 kg · 22.22 kg/m²
Brightness1000 nits
Contrast / grayscale100,000:1 · 16-bit · HDR10
Viewing angleUp to 170°/170°
Refresh rate1,920 – 3,840 Hz
IP ratingIP30
Reliability8 kV ESD · EMC Class B · dual power and signal backup
OptionsInfrared touch · right-angle and irregular custom shapes

The product specifications can be customized.

BROCHURE

Download the Clario Zen brochure

Every MIP and flip-chip COB variant side by side — module and cabinet dimensions, resolution, power draw and certifications per SKU, plus mechanical drawings for mounting.

None of this is on the page. The page tells you which product. The brochure tells you which model.

    From Vision to Reality

    Micro-Pitch Clarity
    Native 16:9 aspect ratio enables seamless 2K, 4K, 8K, and 16K playback without black borders or image distortion, while a 170° viewing angle maintains consistent color and brightness across indoor spaces.
    True-to-Source Color
    Advanced processing matches the screen’s color gamut to your content source, eliminating color deviations and delivering lifelike visuals with consistent uniformity.
    Smooth Gradation and Dynamic Range
    A 100,000:1 contrast ratio, HDR10 support, and 16-bit grayscale ensure deep blacks, vivid highlights, and smooth gradation across brightness levels, creating clear and immersive images.
    Full HD 1920×10804K 3840×21608K 7680×432016:9 ratio

    Engineered for Precision

    Slim and Lightweight
    Each cabinet weighs ≤4.5 kg with a 29.5 mm thickness (max 37 mm), achieving a 44.5 mm wall-mount depth for space efficiency.
    Flexible Configuration
    Integrated daisy-chain cabling supports flexible horizontal and vertical arrangements for clean, efficient setups.
    Small Module Design
    Minimizes deformation and cumulative tolerance, with flatness controlled within 0.1 mm for long-term stability.

    Built for Reliability

    FrostCore Technology
    FrostCore technology combines flip-chip architecture, common cathode design, and advanced ICs to reduce power consumption and heat generation while maintaining high brightness and stable image quality, ensuring a cool, touchable surface for extended operation. Surface temperatures remain around 37 °C during playback at 25 °C ambient, ensuring stable operation.
    ArmoCoat Technology
    A robust protective layer enhances impact resistance and shields LEDs from moisture, salt mist, and oxidation, extending product lifespan. The surface is touch-friendly, easy to clean, and reduces moiré patterns for clear, consistent visuals. Compatible with MIP and COB configurations for diverse project needs.
    System Reliability
    8 kV ESD protection, Class B EMC compliance, and real-time monitoring ensure stable operation. Dual power and signal backups further enhance system reliability for mission-critical use.

    Maintenance Made Simple

    Front Service Access
    Front servicing with magnetic tools enables quick and easy module replacement.
    Low Maintenance Cost
    Small module design allows fast, low-loss replacement with minimal service interruptions.

    Customized to Fit

    Interactive Touch
    Infrared touch frameworks enable seamless interaction.
    Custom Shape Support
    Right-angle and irregular configurations enable creative, site-specific installations.

    Applications

    Mission-critical indoor environments where colour accuracy, uptime and serviceability matter.

    Control rooms and command centresCorporate lobbies and boardroomsBroadcast and studio environments

    Clario Zen in use

    Clario Zen video wall in a mission-critical control room
    Control rooms

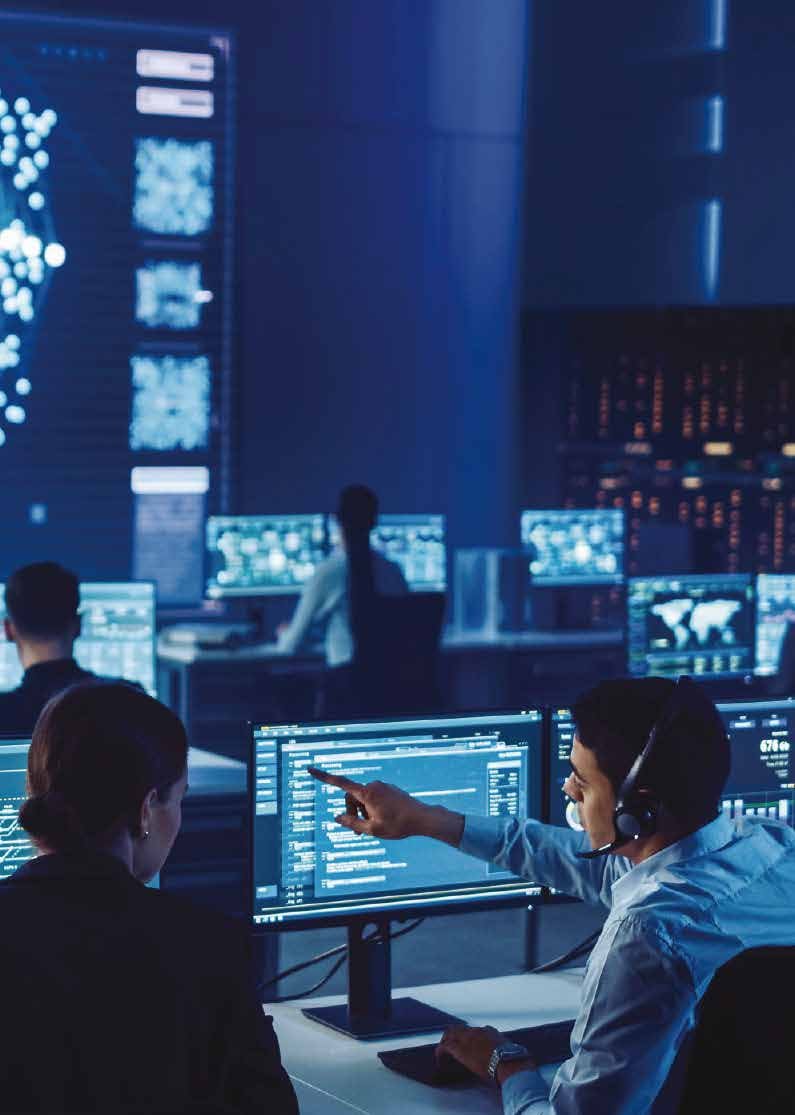

    Operator working at a Clario Zen control room display
    Command and monitoring
    Clario Zen micro-pitch panel shown at an angle
    Micro-pitch surface
