Engage Board — All-in-One Interactive LED Smart Display interactive flat panel display India · LED smart board · Android 13 interactive display · 108 inch

All-in-one smart display for indoor use

Engage Board puts a full LED display, a 10-point infrared touch layer, a 4K conferencing camera and an Android 13 computer into one unit you can wheel into a room and switch on. AI motion compensation and pixel optimisation clean up whatever you throw at it; a 92% screen-to-body ratio and an 18 mm bezel keep the hardware out of the way.

Request a quote

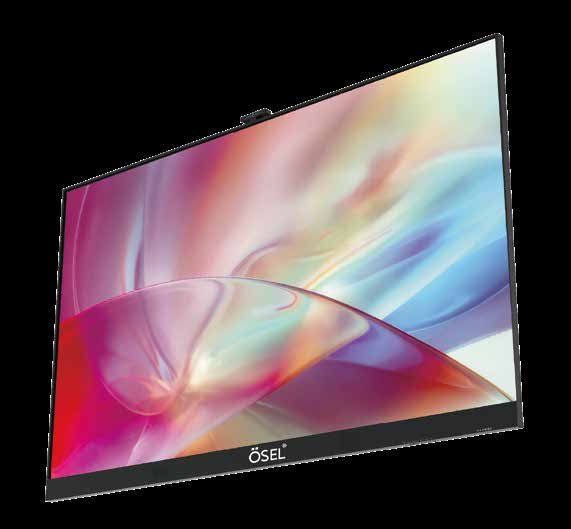

ÖSEL Engage Board interactive LED smart display shown at an angle

At a glance

Product familyInteractive / collaboration display
Sizes108″ (1.25 mm pitch) and 136″ (1.56 mm pitch) — custom sizes available
LED variantsSSG (3-in-1 SMD) · SSM (3-in-1 MIP) · SSC (COB)
Resolution1920 × 1080 (Full HD) on all variants
Operating systemAndroid 13, octa-core, 4 GB RAM + 64 GB storage; optional dual-OS with Windows
AI6 TOPs NPU — AI Motion Compensation, AI Pixel Optimization, AI Voice Control
TouchInfrared, 10 simultaneous touch points, 18 mm frame
Camera4K Ultra-HD, 100° wide angle, face tracking (optional)
ConnectivityHDMI 2.0, USB, RJ-45, Audio 3.5 mm, Wi-Fi 6
AudioBuilt-in speaker bar
Screen-to-body ratio92%
InstallationWall mount (foldable brackets) or mobile stand, 2–2.5 m liftable height
GPU / videoMali-G610 MC4 — decodes and plays 8K content

The product specifications can be customized.

BROCHURE

Download the Engage Board brochure

Both screen sizes (108″ and 136″) side by side — module and cabinet dimensions, resolution, power draw and certifications per SKU, plus mechanical drawings for mounting.

None of this is on the page. The page tells you which product. The brochure tells you which model.

    Turn Content Into Experiences

    Versatile installation
    Wall-mount or mobile-stand setups to suit your space.
    Minimalist design
    Modern aesthetics: a dark colour scheme with an 18 mm infrared touch frame adds to the sophisticated design.
    Immersive visual experience
    Maximised visual impact with a 92% screen-to-body ratio. Vibrant colour and clarity: 16-bit grayscale, a contrast ratio of 100,000:1 and HDR10 support to showcase vibrant colours and sharp visuals.
    Ideal screen size
    Standard sizes: 108″ and 136″. Customisation available — tailor the dimensions to your needs.

    Hardware Built In

    Responsive touchscreen
    Enjoy seamless control with high precision touch capability.
    Built-in speakers
    High-quality integrated speakers for an all-around experience.
    Advanced camera
    Integrated 4K Ultra-HD camera with subject tracking for remote meetings.
    Optional MIP version
    Offers finer resolution, improved image consistency, efficient energy utilisation, and ultra-large viewing angle.
    Smart AI features
    Includes AI Motion Compensation, AI Pixel Optimization, and AI Voice Control.
    Stream high-definition content
    Supports decoding and playing 8K ultra-high-definition video content. Features a Mali-G610 MC4 GPU.

    Smart Technology to Improve the User Experience

    The Engage Board series is designed to streamline your presentations and information exchange, emphasizing intuitive user experience and seamless integration of modern technologies.

    Simple touch control
    The display is equipped with multi-touch functionality, supporting as many as ten simultaneous touch points, which enables seamless engagement with the screen interface. The system is capable of accurately detecting taps, swipes, and gestures with exceptional precision.
    Multi-device mirroring
    Simultaneous display of screen mirroring from multiple devices.
    Enhanced conference experience
    Users can mark up PPTs, images, and video screenshots on-screen and save them via QR code or local storage. By utilising three fingers, users can easily zoom out for detailed writing or zoom in for a full-screen view. A 9-split screen feature allows for efficient review of multiple tasks when using screen mirroring. For local playback, it supports a 2-split screen.
    Intelligent remote conferencing
    The screen features a 4K wide-angle 100° face-tracking video conferencing camera (optional) and supports Wi-Fi 6 for smooth remote meetings.

    AI That Does the Work

    AI Motion Compensation
    This technology allows for the enhancement of originally low frame rate visuals to be displayed at a higher frame rate, significantly improving the smoothness of video playback.
    AI Pixel Optimization
    It generates an improved resolution image by integrating information from multiple low-resolution images, resulting in higher resolution images that provide a more accurate representation of the scene.
    AI Voice Control
    Voice input commands prompt the screen to respond swiftly by opening documents, downloading software, and more.

    Ready for Any Setting and Application

    Engage Board screens are equipped with features to elevate the user experience, making them perfect for conferences and other professional settings.

    Advanced system configuration
    Powered by Android 13 with an octa-core processor, 4 GB RAM, and 64 GB storage for smooth app performance. It can be set up with Windows, allowing dual operating system capabilities. Remote control powered.
    Integrated audiovisual experience
    Built-in speakers that provide good sound quality, offering users a clear and comfortable auditory experience.
    Multiple input ports
    Includes HDMI 2.0, USB, RJ-45, and audio input for versatile media transmission.

    The Components to Create an All-in-One Engage Board Screen

    The elements that make up the screen allow for easy transport and are composed of an intuitive pre-assembled set of LED module columns, speakers, and the camera, to complete the screen.

    Main components
    A 136-inch screen uses five cabinets per column; a 108-inch screen uses four cabinets per column.
    Dark screen
    The screen features an overall dark colour scheme and incorporates a modern thin bezel design, with an infrared touch frame width of only 18 mm.
    92% screen-to-body ratio
    The display delivers a powerful visual impact, enhancing the user’s viewing experience.

    Designed for Easy Installation and Set-Up

    Engage Board displays are designed for quick and easy installation, whether wall-mounted or on a mobile stand.

    Wall-mounted installation
    Foldable brackets save space during shipping and allow for easy adjustment on uneven walls. Pre-assembled in columns of five cabinets with limit blocks for secure attachment.
    Mobile stand installation
    Liftable height between 2 and 2.5 metres for optimal viewing. Flexible wheels make the screen easy to move.

    Applications

    Indoor environments where people gather around a screen and interact with it.

    Conference rooms and boardroomsClassrooms and training roomsRetail spacesExhibition halls and museums

    Engage Board in use

    Engage Board running a video conference with remote participants on screen
    Video conferencing
    Presenter annotating on an Engage Board in front of a seated audience
    Training and classrooms
    Laptop, tablet and phone mirroring content onto an Engage Board
    Multi-device screen mirroring
