Horizon Blaze — High-Brightness Outdoor LED Display

High-brightness outdoor LED solution engineered for efficiency

Horizon Blaze ends the usual trade-off between brightness and running cost. It calibrates at 7,000 nits with headroom to 10,000 — readable in direct sun — while drawing about 20% less energy than conventional outdoor screens, which on a 100 m² wall is roughly 400 kWh saved every day. A full-metal thermal path, a dual-layer aluminium H-frame and IP67 sealing front and rear keep it running through rain, dust and heat.

Request a quote
Horizon Blaze outdoor LED display with cabinet stack beside a floral image

At a glance

Product familyHorizon — outdoor fixed installation
Pixel pitches3.91 mm · 6.94 mm · 10.41 mm
Model numbersOS-FISS-ORHB3.91 · OS-FISS-ORHB6.94 · OS-FISS-ORHB10.41
LED arrangement3-in-1 SMD
Brightness7,000 nits (Standard) / 10,000 nits (Plat), after calibration
Cabinet1000 × 1000 × 93 mm; 500 × 500 mm cabinets share the same modules
Cabinet weight27 kg (59.52 lb)
Grayscale / refresh16-bit · 7,680 Hz
IP ratingIP67 front and rear
Operating temperature−20 °C ~ +50 °C
Power600–660 W/m² max · 200–220 W/m² average
Energy savingAbout 20% less than conventional outdoor screens (~400 kWh/day on a 100 m² screen)
Module flatness≤0.2 mm
Install timeAbout 60 seconds per cabinet
Service accessFront or rear, T-type quick lock
Shapes90° corners, custom curvature on request, optional white cabinet

The product specifications can be customized.

BROCHURE

Download the Horizon Blaze brochure

All three models (3.91 / 6.94 / 10.41 mm) side by side — module and cabinet dimensions, resolution, power draw and certifications per SKU, plus mechanical drawings for mounting.

None of this is on the page. The page tells you which product. The brochure tells you which model.

    Brilliance That Stands Out Anywhere

    Daylight-readable brightness
    Calibrated at 7,000 nits with headroom to 10,000 nits, so content stays crisp and legible in harsh light or sun-exposed placements.
    Smooth, stable imaging
    16-bit grayscale and 7,680 Hz refresh keep gradients smooth and reduce visible scan/flicker for consistent clarity on-site.
    7,000 nits calibrated10,000 nits headroom16-bit grayscale7,680 Hz refresh

    Efficiency Engineered for Performance

    Note: a 100 m² screen on typical duty cycles saves about 400 kWh per day.

    Higher brightness, lower power
    Horizon Blaze delivers up to 7,000 nits of brightness — with headroom to 10,000 — while cutting energy use by about 20% compared with conventional outdoor screens.
    Stronger thermal management
    An all-metal PDU with a significantly enlarged heat-dissipation area improves thermal management, helping the system run cooler and stay reliable over long duty cycles.
    About 20% lower energy use

    Strength and Reliability in Any Weather

    Rigid H-frame cabinet
    A dual-layer aluminum H-frame increases cabinet rigidity and resists lateral deformation, helping large walls stay aligned over time.
    Flat, stable surface
    Module flatness of ≤0.2 mm helps keep seams clean and loading uniform, supporting long-term mechanical stability across large installations.
    IP67 protection, front and rear
    Fully dust-tight and waterproof sealing sustains operation through heavy rain, dust, and heat at exposed outdoor sites.
    ≤0.2 mm module flatnessIP67 front and rear

    Installation and Service Made Easy

    Faster cabinet setup
    With the quick-install system, a trained operator can mount one cabinet in about 60 seconds, using hooks for alignment and buckles for secure lock-in.
    Front or rear service access
    Front and rear service are supported. The new T-type quick lock offers a stable connection and easy maintenance.
    Shared modules, simpler spares
    Shared modules across Horizon Blaze 1000 × 1000 mm and 500 × 500 mm cabinets simplify spare holdings and keep on-site swaps straightforward.
    About 60 seconds per cabinet1000 × 1000 mm and 500 × 500 mm cabinets share modules

    Design Freedom Without Limits

    90° corners
    The dual-chamfer cabinet design supports 90° corners, letting Horizon Blaze wrap facades and align with architectural edges.
    Custom curvature
    Project-specific radii are available on request to match complex sites and keep the screen following the structure.
    Optional white cabinet
    A white option helps the cabinet blend in with light-tone interiors such as retail and gallery spaces.

    Applications

    Built for city landmarks, transit hubs, and premium DOOH — anywhere a screen has to stay legible in full sun and keep running through the weather.

    Premium DOOH and large-format advertisingBuilding facades and architectural wrapsRetail promenades and mall exteriorsTransport hubs and transit interchangesCorporate landmarksLight-toned retail and gallery interiors (optional white cabinet)

    Horizon Blaze in use

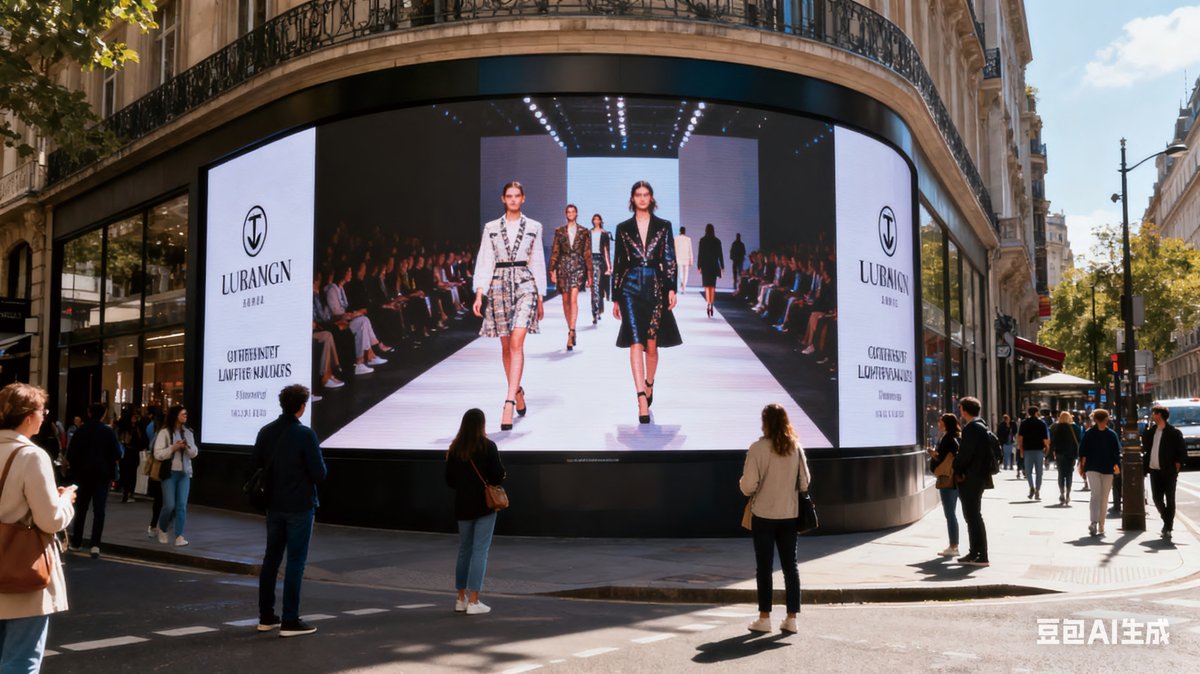

    Horizon Blaze outdoor LED screen on a city street showing an advertisement
    DOOH and street-level advertising
    Horizon Blaze LED display mounted on a building facade
    Building facades

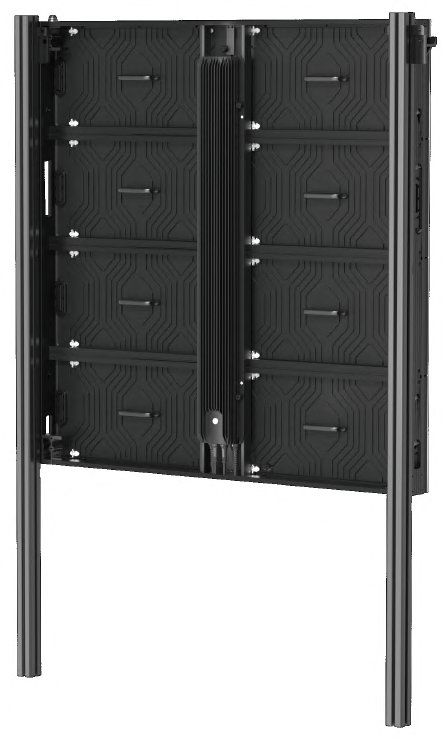

    Horizon Blaze display on a freestanding pole-mounted structure
    Pole and totem mounting

    Innovation Redefined

    Choose ÖSEL for unmatched quality, reliability and performance.
