Nomad Link — The One-4-All Rental LED System

The One-4-All Rental System

Nomad Link is not a cabinet — it’s the structure six ÖSEL rental series share. Because every line uses the same ClickFrame geometry, a broadcast-grade NLDB can sit in the same build as an outdoor NLAR, and the whole system can fold into right angles, cubes and curves without adaptors. One set of spares, one assembly logic, one inventory.

At a glance

Product family	Nomad — rental and staging platform
Cabinet series	NLDB · NLEZ · NLAP · NLGX · NLAR · NLRS
Pitch range	1.56 – 3.9 mm depending on series
Brightness range	1000 – 5000 nits depending on series
Configurations	Flat · right-angle / cube · curved and hybrid (with Nomad Curve)
Assembly	ClickFrame + ClickBar, colour-coded, 0° / 90° markings, tool-free PDU
Technologies	FortiCore (all) · TrueView (NLDB, NLGX) · ArmoCoat (NLDB, NLEZ)

The product specifications can be customized.

BROCHURE

Download the Nomad Link brochure

All six cabinet series (NLDB, NLEZ, NLAP, NLGX, NLAR, NLRS) side by side — module and cabinet dimensions, resolution, power draw and certifications per SKU, plus mechanical drawings for mounting.

None of this is on the page. The page tells you which product. The brochure tells you which model.

One Structure, Multiple Forms

Built on a unified structural standard, the Nomad Link platform ensures identical precision and geometry across all configurations.

Standard flat screens

Deliver seamless uniformity and exceptional visual consistency for large-scale or conventional displays.

Right-angle screens

Achieve precise 90° corners and cube assemblies with repeatable accuracy.

Curved & hybrid screens

Combine with Nomad Curve to enable curved installations up to ±45°, allowing creative combinations that merge curved and right-angle sections within a single display.

Stronger, Steadier, Reliable

The Nomad Link platform integrates ÖSEL’s core protection and display technologies to ensure structural strength, optical stability and long-term visual reliability across professional rental environments.

Stronger — FortiCore Technology

The 8-pin LED configuration, combined with a refined PCB layout and GOE craft, improves LED adhesion and impact resistance by 4–10 times. This structural enhancement greatly reduces the risk of damage during transportation or use, ensuring long-term reliability in frequent setup conditions.

Steadier — TrueView Technology (NLDB, NLGX)

TrueView technology, specially designed for Extended Reality & Virtual Production applications, maintains consistent color temperature and brightness across a 160° wide viewing angle.

Reliable — ArmoCoat Technology (NLDB, NLEZ)

ArmoCoat Technology applies a refined GOB (Glue on Board) process that seals each LED against moisture, dust and salt mist while reinforcing impact resistance. The smooth, hard-surface layer enhances durability and optical consistency, reducing moiré and ensuring clean and uniform visuals. An Ingenious System That Streamlines Setup and Simplifies Maintenance The NL platform shares a unified design logic for faster setup, precise alignment and simplified maintenance.

Elements of the Nomad Link

Top bar, ClickFrame, modules, left bar / KeyBar, right bar, PDU and bottom bar make up each cabinet.

ClickFrame assembly

Colour indicators on the ClickFrame match those on the back of each ClickBar, guiding correct placement during assembly — Top: Tangerine · Left: Lime · Right: Red · Bottom: Blue. Markings at 0° and 90° indicate flat and right-angle configurations for repeatable precision. For right-angle assemblies, the KeyBar (left ClickBar) must be used. Lock the ClickBar onto the ClickFrame. Press the red button and twist to unlock; twist back to lock. Tool-free PDU quick-detach design allows fast replacement during maintenance.

NLDB

Indoor Rental | Broadcast | Extended Reality & Virtual Production NLDB is tailored for high-end indoor and virtual production environments, delivering 16-bit grayscale, 7680 Hz refresh rate and stable color performance. Pixel pitch Brightness Key feature 1.56 / 1.95 / 2.6 mm 1000–1200 nits Connects with Nomad Curve for ±45° left-right curved assembly

Indoor Rental | Event | Exhibition

NLEZ is a fine-pitch indoor rental LED display designed for flexible creative setups. It delivers vivid contrast, rich colors and adjustable angles to meet diverse design needs. Pixel pitch Brightness Key feature 1.95 / 2.6 mm 1000–1200 nits Connects with Nomad Curve for ±45° left-right curved assembly

Indoor & Outdoor Rental | Live events | Sports

NLAP features an ultra-light design with fast installation, offering flexible configurations and detailed visuals for efficient rental setups. Pixel pitch Brightness Key feature Indoor 2.5 mm · Outdoor Indoor 1000 nits · Outdoor Replaceable edge beams allow hybrid setups with Nomad Curve, 3.9 mm 5000 nits supporting ±45° curvature

Indoor Rental | Events | Extended Reality & Virtual Production

NLGX builds on the proven reliability and flexibility of the Nomad Curve series, delivering comprehensive performance with lightweight design and creative versatility. Pixel pitch Brightness Key feature Connects with Nomad Curve for ±30° curved assembly, unlocking

1.95 / 2.5 / 2.97 mm 1000 nits

more creative screen options

Outdoor Rental | Stage | Festivals

NLAR is a high-end outdoor rental display delivering strength, clarity and weather resistance. Pixel pitch Brightness Key feature Supports ±30° curved assembly with the outdoor version of Nomad

3.9 mm 4000–5000 nits

Curve

Indoor & Outdoor Rental | Concerts | Touring

NLRS is the lightweight flagship of the NL platform, combining a rigid structure with effortless handling for touring and premium rental applications. Pixel pitch Brightness Key feature Indoor 2.5 / 2.6 mm · Indoor 1000–1200 nits · Supports ±45° curved assembly with Nomad Curve (±30° for the Outdoor 3.9 mm Outdoor 5000 nits outdoor version)

Applications

One platform spanning broadcast, events, sport, festivals and touring.

Broadcast studios and XR / virtual productionCorporate events and exhibitionsLive events and stadium sportOutdoor stages and festivalsConcert touring

Nomad Link in use

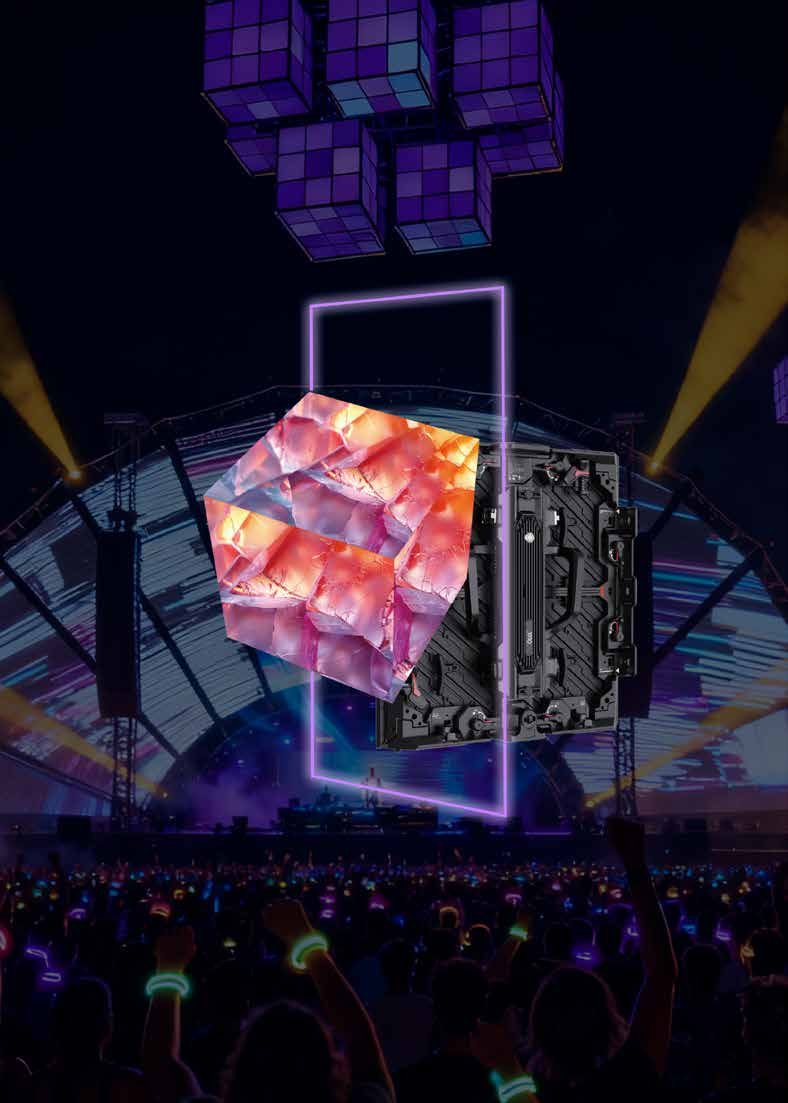

Nomad Link cabinets built into a suspended cube LED structure — Cube and 3D builds

Side-by-side comparison of standard output against ÖSEL TrueView — TrueView image processing

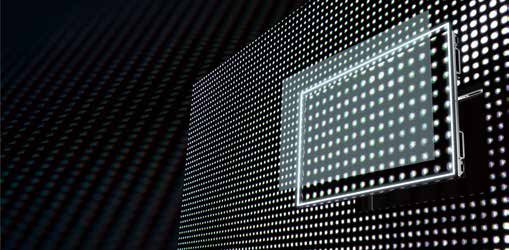

Close view of the Nomad Link LED surface and pixel structure — LED surface detail
